GTK Theming Isn't Really That Hard. Honest!

So, I've been away for awhile...

Been rebuilding a machine, getting fed up, buying a new computer, setting that up, and generally being ADHD with all my little projects...

Anyway, I've started working on GTK themes, and as it turns out, it's not as difficult as it seems at first. I've released two GTK themes recently on my DeviantArt account...Have a look!
From Screenshots
Ultrasuede is the first of the two themes, named after the sofa I sit on to do most of my work! I'm not entirely sure why I started with this one, after all, it's no secret that it's difficult to write dark GTK themes, and as it turns out, it's even harder when you want only parts of the theme to be dark (in this case, the menubar/menus and toolbar). I still consider this one a work-in-progress, but I still love it for its softness of colour and general readability. Plus, it's got lovely blue tooltips!

From Screenshots

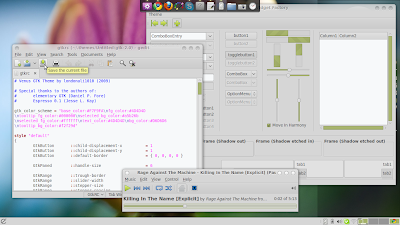

Venus is my latest theme, and the one I'm currently using. I originally started it because I wanted to write a grey/silver theme, but the ones I find tend to be either too simple or too shiny. I don't like my widgets to be glassy; I prefer a more soft, smooth lighting effect. So I started with the colour scheme from elementary (one of my favourite packages, although like I said, I find the widgets too shiny) and went from there...Changing the accent colour from blue to green, and added soft yellow tooltips. Very soothing, I think!

But anyway, the point of this post was not to toot my own horn ("Too late!" I hear you cry...), it was to explain how I started in GTK theming, and point out some tips to get you started doing it for yourself.

First things first: Step 1 is to grab some GTK themes that you like. Some of my favourites are:
Then, find and bookmark the GTK Hierarchy and the GTK reference manual. All of these things will help you later.

Now, close your eyes, hold your breath, and jump in.

Start by copying one of your themes into ~/.themes/ and changing the folder to something you can remember. I tend to use ~/.themes/Untitled for new themes I'm working on. The file structure of a GTK theme looks like:
+-- .themes/
    +-- Untitled/
        +-- gtk-2.0/
            +-- gtkrc
If it's a theme like Human, you may also find folders for Metacity, an index.theme (for icons) and others inside the Untitled/ folder.

It's the gtkrc that we want to edit. It's a simple text file with a relatively simple layout.

First, you may define a colour scheme (this is what turns up in the Colors tab of the Customize... dialog in Gnome Appearance Preferences). It will look something like this:
gtk_color_scheme = "base_color:#F7F9FA\nfg_color:#4D4D4D\ntooltip_fg_color:#000000\nselected_bg_color:#a5b26b\nselected_fg_color:#ffffff\ntext_color:#4D4D4D\nbg_color:#D6D6D6\ntooltip_bg_color:#f2f29d"
Next, you should have a listing of styles, in the format
style "name"
    Various style properties
Start with a "default" style, which will be applied to all widgets, and then on to more specific styles that will apply to only certain widgets. The default style can contain as much as little as you like, but typically you will find:
  • Some specific widget style properties, of the format GtkWidget::style-property = value
  • Thickness parameters, which define the padding of the objects inside widgets, and look line xthickness = value and ythickness = value
  • Colour definitions, of which there should be 20: foreground (fg), background (bg), background of entry fields (base) and text (text), and five states for each (normal, prelight, active, selected and insensitive)
  • Default settings for the engine (if any) you choose to use
The "default" style for my latest theme, Venus, looks like this:
style "default"
 GtkButton ::child-displacement-x  = 1
 GtkButton ::child-displacement-y  = 1
 GtkButton ::default-border  = { 0, 0, 0, 0 }

 GtkPaned ::handle-size   = 6

 GtkRange ::trough-border   = 0
 GtkRange ::slider-width   = 13
 GtkRange ::stepper-size   = 13
 GtkRange ::stepper-spacing  = 1
 GtkRange ::activate-slider  = 1
 GtkRange ::arrow-displacement-x  = 1
 GtkRange ::arrow-displacement-y  = 1
 GtkRange ::arrow-scaling   = 0.7

  GtkScale ::slider-width  = 13 # Needs to be ODD in order to center evenly
  GtkScale ::slider-length  = 13
  GtkScale ::trough-side-details = 1 # 0 = empty slider, 1 = filled
  GtkScale ::trough-border  = 1

  GtkScrollbar ::min-slider-length = 42

 GtkScrolledWindow ::scrollbar-spacing = 3

 GtkNotebook ::tab-curvature   = 1
 GtkNotebook ::tab-overlap   = 1

 GtkMenuBar ::internal-padding  = 0

 GtkExpander ::expander-size   = 14

 GtkToolbar ::internal-padding  = 0
 GtkToolButton ::icon-spacing   = 3

 GtkTreeView ::expander-size   = 14
 GtkTreeView ::vertical-separator  = 0

 GtkMenu  ::horizontal-padding  = 0
 GtkMenu  ::vertical-padding  = 0

 xthickness = 1
 ythickness = 1

 fg[NORMAL]        = @fg_color
 fg[PRELIGHT]      = @fg_color
 fg[SELECTED]      = @selected_fg_color
 fg[ACTIVE]        = @fg_color
 fg[INSENSITIVE]   = shade (0.7, @bg_color)

 bg[NORMAL]        = @bg_color
 bg[PRELIGHT]      = shade (1.05, @bg_color)
 bg[SELECTED]   = @selected_bg_color
 bg[INSENSITIVE]   = @bg_color
 bg[ACTIVE]        = shade (0.95, @bg_color)

 base[NORMAL]      = @base_color
 base[PRELIGHT]    = shade (0.95, @bg_color)
 base[ACTIVE]      = shade (0.7, @bg_color) # Unfocused selected text background
 base[SELECTED]    = @selected_bg_color
 base[INSENSITIVE] = @bg_color

 text[NORMAL]      = @text_color
 text[PRELIGHT]    = @text_color
 text[ACTIVE]      = @selected_fg_color
 text[SELECTED]    = @selected_fg_color
 text[INSENSITIVE] = shade (0.7, @bg_color)

 engine "murrine"
  animation  = TRUE # FALSE = disabled, TRUE = enabled
  colorize_scrollbar = TRUE # FALSE = disabled, TRUE = enabled
  scrollbar_color  = @selected_bg_color
  contrast  = 0.8 # 0.8 for less contrast, more than 1.0 for more contrast on borders
  glazestyle  = 0  # 0 = flat highlight, 1 = curved highlight, 2 = concave style, 3 = top curved highlight, 4 = beryl highlight
  gradient_shades  = {1.05,1.02,1.02,1.0} # default: {1.1,1.0,1.0,1.1}
  gradients  = TRUE # FALSE = disabled, TRUE = enabled
  highlight_shade  = 1.0 # set highlight amount for buttons or widgets
  lightborder_shade = 1.0 # sets lightborder amount for buttons or widgets
  lightborderstyle = 0   # 0 = lightborder on top side, 1 = lightborder on all sides
  listviewheaderstyle = 1   # 0 = flat, 1 = glassy, 2 = raised
  listviewstyle  = 1   # 0 = nothing, 1 = dotted
  menubaritemstyle = 1   # 0 = menuitem look, 1 = button look
  menubarstyle  = 0   # 0 = flat, 1 = glassy, 2 = gradient, 3 = striped
  menuitemstyle  = 1  # 0 = flat, 1 = glassy, 2 = striped
  menustyle  = 0   # 0 = no vertical menu stripe, 1 = display vertical menu stripe
  reliefstyle  = 1   # 0 = flat, 1 = inset, 2 = shadow
  rgba   = FALSE # FALSE = disabled, TRUE = enabled
  roundness  = 3  # 0 = squared, 1 = old default, more will increase roundness
  scrollbarstyle  = 0     # 0 = nothing, 1 = circles, 2 = handles, 3 = diagonal stripes, 4 = diagonal stripes and handles, 5 = horizontal stripes, 6 = horizontal stripes and handles
  sliderstyle  = 0  # 0 = nothing added, 1 = handles
  stepperstyle  = 1  # 0 = standard, 1 = integrated stepper handles, 2 = unknown
  toolbarstyle  = 2  # 0 = flat, 1 = glassy, 2 = gradient
Since you will apply the default style to all widgets and then pick out individual widgets to change after that, the other styles you define will typically only be a couple of lines long, which will override the corresponding lines from the default style.

After you've defined all your styles, then comes widget matching. It's how the theme applies your styles to all the various widgets that might pop up in GTK-based programs. There are three types of matching:
  1. Class
  2. Widget class
  3. Widget
The first (class) is the most generic, and the last (widget) is most specific. Widget overrides widget class overrides class. Within each type of matching, later lines override earlier lines. So for instance:
class "GtkWidget" style "default"
widget_class "*GtkCombo*" style "wider"
widget "*.gtk-combobox-popup-menu.*" style "combobox-popup"
Here, all widgets first have the default theme applied. Then anything whose widget class contains GtkCombo (note the * wild card) has the "wider" style applied. Finally, the very specific case of a widget with .gtk-combobox-popup-menu. will have "combobox-popup" applied. (Please note there is some trickiness here to do with the wild card * -- you can also use $ for a single-character wild card -- and the best place to learn to navigate it is to use trial and error.)

And that's it...For the basics, that is! To get started making your own theme, I would start by tweaking with someone else's, so you get a feel for what changes what. Then if you get really brave, you can start from scratch (which after a few goes, I actually found was easiest!).

The hardest parts of GTK theming are the widget matching, understanding how the widgets are arranged in a hierarchy and understanding how their styles get inherited. I can't say I'm an expert, but that's where step 1 comes in! The best way to learn is a combination of looking at other people's themes and reading the GTK documentation. The latter is particularly useful because the widget hierarchy pages have listings of what style-properties you can specify in your styles.

I hope this gives some of you out there the courage to go ahead and try it...As with all things open-source, the more of us out there doing it, the easier it makes it for all of us!
